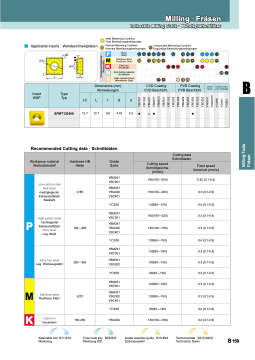

Page 159 - Fräsen Komplettprogramm

Milling · Fräsen
Indexable Milling Tools · Wendeplattenfräser
Applicable inserts · Wendeschneidplatten
Insert
WSP
Recommended Cutting data · Schnittdaten
Unfavorable Machining Condition
Ungünstige Bearbeitungsbedingungen
Ideal Machining Condition
Gute Bearbeitungsbedingungen
Normal Machining Condition
Normale Bearbeitungsbedingungen
Steel
Stahl
Stainless Steel
Rostfreier Stahl
Cast iron
Gusseisen
Non-ferrite material
Ne Metalle
Heat-resistant steel
Warmfester Stahl
B
Type
Typ
SPMT120408
Dimensions (mm)
Abmessungen
CVD Coating
CVD Beschicht.
PVD Coating
PVD Beschicht.
Cermet
Cermet
Carbide uncoat.
unbe. Hartmetall
I.C L r S d
12.7 12.7 0.8 4.76 5.5
●
○
●
●
Workpiece material
Werkstückstoff
Hardness HB
Härte
Grade
Sorte
Cutting data
Schnittdaten
Cutting speed
Schnittgeschw.
(m/min)
Feed speed
Vorschub (mm/z)
P
Low-carbon steel Soft steel niedriglegierter Kohlenstoffstahl Baustahl
≤180
YBM251 YBC301
180(100—250)
0.25 (0.1-0.4)
YBM351 YBG302 YBC401
150(100—200)
0.3 (0.1-0.5)
YC30S
120(80—150)
0.4 (0.1-0.5)
High-carbon steel
hochlegierter Kohlenstoffstahl Alloy steel Leg. Stahl
180—280
YBM251 YBC301
160(100—220)
0.3 (0.1-0.4)
YBM351 YBG302 YBC401
130(100—180)
0.3 (0.1-0.5)
YC30S
100(60—150)
0.4 (0.1-0.5)
Alloy tool steel
Leg. Werkzeugstahl
280—350
YBM251 YBC301
120(80—180)
0.3 (0.1-0.4)
YBM351 YBG302
100(80—150)
0.3 (0.1-0.5)
YC30S
80(60—120)
0.4 (0.1-0.5)
M
Stainless steel
Rostfreier Stahl
≤270
YBM251 YBC301
120(80—180)
0.3 (0.1-0.4)
YBM351 YBG302 YBC401
100(80—150)
0.3 (0.1-0.5)
YC30S
80(60—120)
0.4 (0.1-0.5)
K
Cast iron
Gusseisen
180-250
YBG302
130(100—180)
0.4 (0.1-0.5)
Applicable tool B11-B18 Tools code key B26-B27
Werkzeug Werkzeug ISO
Grade selection guide
Sortenauswahl
B19-B23
Technical data
B215-B220
B159
Technische Daten
Milling Tools Fräser
YBC301 YBC302 YBC401 YBM251 YBM253 YBM351 YBD152 YBD252 YBG102 YBG202 YBG205 YBG302 YBG152 YBG252 YNG151 YNG151C YC30S YD101 YD201
Workpiece Material
Werkstoffe
