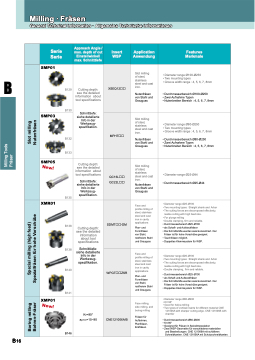

Page 16 - Fräsen Komplettprogramm
P. 16
General Technical Information · Allgemeine Technische Informationen
General Turning /Allgemeine Drehbearbeitung, ISO Kennzeichnung
Milling · Fräsen
Serie
Serie
Approach Angle / max. depth of cut Einstellwinkel/ max. Schnitttiefe
Insert
WSP
Application
Anwendung
Features
Merkmale
SMP01
B129
B130
Cutting depth: see the detailed information about tool specifications
Schnitttiefe: siehe detailierte Info in der Werkzeug- spezifikation.
XSEQ12
Slot milling
of steel, stainless steel and cast iron.
Nutenfräsen von Stahl und Grauguss
• Diameter range Ø100-Ø250
• Two mounting types
• Groove width range : 4, 5, 6, 7, 8mm
• Durchmesserbereich Ø100-Ø250
• Zwei Aufnahme Typen
• Nutenbreiten Bereich : 4, 5, 6, 7, 8mm
SMP03
B132
B133
MPHT
Slot milling
of steel, stainless steel and cast iron.
Nutenfräsen von Stahl und Grauguss
• Diameter range Ø80-Ø250
• Two mounting types
• Groove width range : 4, 5, 6, 7, 8mm
• Durchmesserbereich Ø80-Ø250
• Zwei Aufnahme Typen
• Nutenbreiten Bereich : 4, 5, 6, 7, 8mm
SMP05
B135
Cutting depth: see the detailed information about tool specifications
Schnitttiefe: siehe detailierte Info in der Werkzeug- spezifikation.
QC16L QC22L
Slot milling
of steel, stainless steel and cast iron.
Nutenfräsen von Stahl und Grauguss
• Diameter range Ø25-Ø44
• Durchmesserbereich Ø25-Ø44
XMR01
B138
B138
B140
B141
Cutting depth: see the detailed information about tool specifications
Schnitttiefe: siehe detailierte Info in der Werkzeug- spezifikation.
SDMT-DM
Face and profile milling of steel, stainless steel and cast iron in cavity applications
Plan- und Formfräsen von Stahl, rostfreiem Stahl und Grauguss
• Diameter range Ø25-Ø100
• Two mounting types: Straight shank and Arbor • The cutting forces are decomposed effectively,
realize cutting with high feed rate.
• For plunge milling
• Double clamping, firm and reliable.
• Durchmesserbereich Ø25-Ø100
• als Schaft- und Aufsteckfräser
• Die Schnittkräfte werden axial konzentriert. Der
Fräser ist für hohe Vorschübe geeignet. • Tauchfräsen möglich.
• Doppeltes Klemmsystem für WSP.
WPGTZSR
Face and profile milling of steel, stainless steel and cast iron in cavity applications
Plan- und Formfräsen von Stahl, rostfreiem Stahl und Grauguss
• Diameter range Ø20-Ø100
• Two mounting types: Straight shank and Arbor • The cutting forces are decomposed effectively,
realize cutting with high feed rate.
• Double clamping, firm and reliable.
• Durchmesserbereich Ø25-Ø100
• als Schaft und Aufsteckfräser
• Die Schnittkräfte werden axial konzentriert. Der
Fräser ist für hohe Vorschübe geeignet. • Doppeltes Klemmsystem für WSP.
XMP01
B146
Kr=90° apmax=15~90
CNE121006A/B
Face milling, side milling, and boring milling
Fräsen für Aufbohren, Planfräsen, Eckfräsen
• Diameter range Ø80-Ø400
• Kr=90°
• Good for helica milling
• Two types of vertical inserts for different material CNE
121006A with sharper cutting edge. CNE 121006B with chamfer
• Durchmesserbereich Ø80-Ø400
• Kr=90°
• Geeignet für Fräsen in Spiralinterpolation
• Zwei WSP-Geometrie für verschiedene materialien
und Bearbeitungen. CNE 121006A mit schäferen Schneidkanten. CNE 121006A mit Schutzschneidkanten.
B
B 16
New!
New!
Boring milling Special milling (high feed)
Slot milling
Bohren-Fräser Spezialfräsen für hohe Vorschübe
Nutenfräsen
Milling Tools
Fräser
