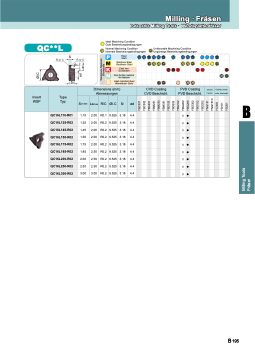

Page 195 - Fräsen Komplettprogramm

Milling · Fräsen
Indexable Milling Tools · Wendeplattenfräser
QC**L
Ideal Machining Condition
Gute Bearbeitungsbedingungen
Normal Machining Condition
Normale Bearbeitungsbedingungen
Steel
Stahl
Stainless Steel
Rostfreier Stahl
Cast iron
Gusseisen
Non-ferrite material
Ne Metalle
Heat-resistant steel
Warmfester Stahl
Unfavorable Machining Condition
Ungünstige Bearbeitungsbedingungen
S
S1
Type
Typ
QC16L110-R01
QC16L125-R02
QC16L145-R02
QC16L150-R02
QC16L175-R02
QC16L185-R02
QC16L200-R02
QC16L250-R02
QC16L300-R02
Dimensions (mm)
Abmessungen
CVD Coating
CVD Beschicht.
PVD Coating
PVD Beschicht.
Cermet
Cermet
Carbide uncoat.
unbe. Hartmetall
S±0.025
1.10
1.25
1.45
1.50
1.75
1.85
2.00
2.50
3.00
Lamax
2.00
2.00
2.00
2.00
2.00
2.50
2.50
2.50
3.00
R/C
R0.1
R0.2
R0.2
R0.2
R0.2
R0.2
R0.2
R0.2
R0.2
ØI.C
9.525
9.525
9.525
9.525
9.525
9.525
9.525
9.525
9.525
S1
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
ød
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
○ ○ ○ ○ ○ ○ ○ ○ ○
● ● ● ● ● ● ● ● ●
Insert
WSP
B
B 195
Milling Tools Fräser
YBC301 YBC302 YBC401 YBM251 YBM253 YBM351 YBD152 YBD252 YBG102 YBG202 YBG205 YBG302 YBG152 YBG252 YNG151 YNG151C YC30S YD101 YD201
ØI.C
2o Lamax
Workpiece Material
Werkstoffe
