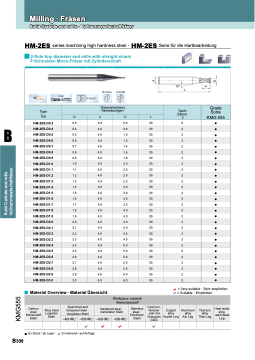

Page 330 - Fräsen Komplettprogramm

Solid Carbide end mills · Vollhartmetallschaftfräser
General Turning /Allgemeine Drehbearbeitung, ISO Kennzeichnung
Milling · Fräsen
Coated
Nano-AITiN
D<1mm 1mm≤D
10°
L
H
35o
D 0~-0.015
Type
Typ
Dimension(mm)
Abmessungen
Teeth
Zähne
Z
Grade
Sorte
KMG 555
D
d
H
L
HM-2ES-D0.4
0.4
4.0
0.8
50
2
●
HM-2ES-D0.6
0.6
4.0
1.2
50
2
●
HM-2ES-D0.8
0.8
4.0
1.6
50
2
●
HM-2ES-D1.0
1.0
4.0
2.0
50
2
●
HM-2ES-D1.2
1.2
4.0
2.5
50
2
●
HM-2ES-D1.4
1.4
4.0
3.0
50
2
●
HM-2ES-D1.6
1.6
4.0
3.5
50
2
●
HM-2ES-D1.8
1.8
4.0
4.0
50
2
●
HM-2ES-D2.0
2.0
4.0
4.0
50
2
●
HM-2ES-D2.2
2.2
4.0
4.5
50
2
●
HM-2ES-D2.4
2.4
4.0
5.0
50
2
●
HM-2ES-D2.6
2.6
4.0
5.0
50
2
●
HM-2ES-D2.8
2.8
4.0
5.5
50
2
●
HM-2ES-D3.0
3.0
4.0
6.0
50
2
●
Workpiece material
Werkstückstoff
Carbon steel Kohlenstoff Stahl
Alloy steel
Legierter Stahl
Quenched and tempered steel · Vergüteter Stahl
Hardened steel ·
Gehärteter Stahl
Stainless steel · Rostfreier Stahl
Cast iron, Nodular cast iron Grauguss GGG
Copper alloy Kupfer Leg
Aluminum alloy Alu Leg
Titanium alloy Titan Leg
Heat resist alloy warmfeste Leg
~40HRC
~50HRC
~60HRC
~68HRC
HM-2ES series machining high hardness steel · HM-2ES Serie für die Hartbearbeitung 2-flute tiny diameter end mills with straight shank
2-Schneiden Mirco-Fräser mit Zylinderschaft
B
HM-2ES-D0.3 HM-2ES-D0.5 HM-2ES-D0.7 HM-2ES-D0.9 HM-2ES-D1.1 HM-2ES-D1.3 HM-2ES-D1.5 HM-2ES-D1.7 HM-2ES-D1.9 HM-2ES-D2.1 HM-2ES-D2.3 HM-2ES-D2.5 HM-2ES-D2.7 HM-2ES-D2.9
0.3 4.0 0.6 0.5 4.0 1.0 0.7 4.0 1.4 0.9 4.0 1.8 1.1 4.0 2.0 1.3 4.0 2.5 1.5 4.0 3.0 1.7 4.0 3.5 1.9 4.0 4.0 2.1 4.0 4.0 2.3 4.0 4.5 2.5 4.0 5.0 2.7 4.0 5.5 2.9 4.0 6.0
50 2 ● 50 2 ● 50 2 ● 50 2 ● 50 2 ● 50 2 ● 50 2 ● 50 2 ● 50 2 ● 50 2 ● 50 2 ● 50 2 ● 50 2 ● 50 2 ●
= Very suitable · Sehr empfohlen = Suitable · Empfohlen
Material Overview · Material Übersicht
 
● Ex Stock / ab Lager ○ On demand / auf Anfrage
B 330
KMG555
Solid Carbide end mills
Vollhartmetallschaftfräser
