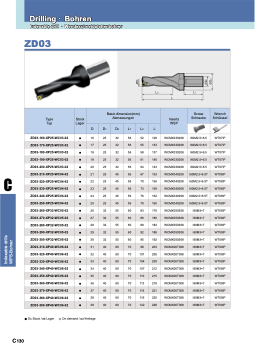

Page 130 - Bohren Komplettprogramm

Indexable drill · Wendeschneidplattenbohrer
Drilling · Bohren
Type
Typ
Stock
Lager
Basic dimension(mm)
Abmessungen
Inserts
WSP
Screw
Schraube
Wrench
Schlüssel
D
D1
D2
L1
L2
L
ZD03-170-XP25-WC03-02
●
17
25
32
56
55
133
WCMX030208
I60M2.5×6.5
WT07IP
ZD03-190-XP25-WC03-02
●
19
25
32
56
61
140
WCMX030208
I60M2.5×6.5
WT07IP
ZD03-210-XP25-WC04-02
●
21
25
45
56
67
153
WCMX040208
I60M2.5×6.5T
WT08IP
ZD03-230-XP25-WC04-02
●
23
25
45
56
73
159
WCMX040208
I60M2.5×6.5T
WT08IP
ZD03-250-XP25-WC04-02
●
25
25
45
56
79
165
WCMX040208
I60M2.5×6.5T
WT08IP
ZD03-270-XP32-WC05-02
●
27
32
55
60
86
180
WCMX050308
I60M3×7
WT09IP
ZD03-290-XP32-WC05-02
●
29
32
55
60
92
188
WCMX050308
I60M3×7
WT09IP
ZD03-310-XP40-WC06-02
●
31
40
60
70
98
203
WCMX06T308
I60M3×7
WT09IP
ZD03-330-XP40-WC06-02
●
33
40
60
70
104
209
WCMX06T308
I60M3×7
WT09IP
ZD03-350-XP40-WC06-02
●
35
40
60
70
110
215
WCMX06T308
I60M3×7
WT09IP
ZD03-370-XP40-WC06-02
●
37
40
60
70
116
221
WCMX06T308
I60M3×7
WT09IP
ZD03-390-XP40-WC06-02
●
39
40
60
70
122
228
WCMX06T308
I60M3×7
WT09IP
ZD03
C
ZD03-160-XP25-WC03-02
ZD03-180-XP25-WC03-02
ZD03-200-XP25-WC03-02
ZD03-220-XP25-WC04-02
ZD03-240-XP25-WC04-02
ZD03-260-XP32-WC05-02
ZD03-280-XP32-WC05-02
ZD03-300-XP32-WC05-02
ZD03-320-XP40-WC06-02
ZD03-340-XP40-WC06-02
ZD03-360-XP40-WC06-02
ZD03-380-XP40-WC06-02
● 16 25 ● 18 25 ● 20 25 ● 22 25 ● 24 25 ● 26 32 ● 28 32 ● 30 32 ● 32 40 ● 34 40 ● 36 40 ● 38 40
32 56
32 56
32 56
45 56
45 56
55 60
55 60
55 60
60 70
60 70
60 70
60 70
52 129
58 137
64 143
70 156
76 162
83 176
89 184
95 192
101 206
107 212
113 218
119 225
WCMX030208
WCMX030208
WCMX030208
WCMX040208
WCMX040208
WCMX050308
WCMX050308
WCMX050308
WCMX06T308
WCMX06T308
WCMX06T308
WCMX06T308
I60M2.5×6.5 WT07IP
I60M2.5×6.5 WT07IP
I60M2.5×6.5 WT07IP
I60M2.5×6.5T WT08IP
I60M2.5×6.5T WT08IP
I60M3×7 WT09IP
I60M3×7 WT09IP
I60M3×7 WT09IP
I60M3×7 WT09IP
I60M3×7 WT09IP
I60M3×7 WT09IP
I60M3×7 WT09IP
C 130
● Ex Stock / ab Lager ○ On demand / auf Anfrage
Indexable drills WPS-Bohrer
