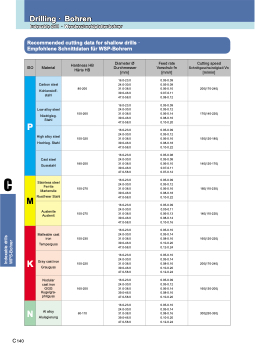

Indexable drill · Wendeschneidplattenbohrer
Drilling · Bohren
ISO
Material
Hardness HB
Härte HB
Diameter Ø
Durchmesser
[mm]
Feed rate
Vorschub fn
[mm/r]
Cutting speed
Schnittgeschwindigkeit Vc
[m/min]
P
Carbon steel
Kohlenstoff- stahl
80-200
16.0-23.0 24.0-30.0 31.0-38.0 39.0-46.0 47.0-58.0
0.05-0.09 0.05-0.09 0.06-0.10 0.07-0.11 0.08-0.12
200(170-240)
Low alloy steel
Niedrigleg. Stahl
150-260
16.0-23.0 24.0-30.0 31.0-38.0 39.0-46.0 47.0-58.0
0.05-0.09 0.05-0.12 0.06-0.14 0.08-0.16 0.10-0.20
170(140-220)
High alloy steel
Hochleg. Stahl
150-320
16.0-23.0 24.0-30.0 31.0-38.0 39.0-46.0 47.0-58.0
0.05-0.09 0.05-0.12 0.06-0.16 0.08-0.18 0.10-0.22
150(120-180)
Cast steel
Gussstahl
180-250
16.0-23.0 24.0-30.0 31.0-38.0 39.0-46.0 47.0-58.0
0.05-0.08 0.05-0.08 0.06-0.10 0.07-0.11 0.07-0.12
140(120-170)
M
Stainless steel Ferrite Martensite
Rostfreier Stahl
150-270
16.0-23.0 24.0-30.0 31.0-38.0 39.0-46.0 47.0-58.0
0.05-0.09 0.05-0.12 0.06-0.16 0.08-0.18 0.10-0.22
160(110-230)
Austenite
Austenit
150-275
16.0-23.0 24.0-30.0 31.0-38.0 39.0-46.0 47.0-58.0
0.05-0.09 0.05-0.11 0.06-0.13 0.08-0.14 0.10-0.16
140(110-220)
K
Malleable cast iron
Temperguss
150-230
16.0-23.0 24.0-30.0 31.0-38.0 39.0-46.0 47.0-58.0
0.05-0.10 0.05-0.14 0.08-0.16 0.10-0.20 0.12-0.24
160(120-220)
Gray cast iron
Grauguss
150-220
16.0-23.0 24.0-30.0 31.0-38.0 39.0-46.0 47.0-58.0
0.05-0.10 0.05-0.14 0.08-0.16 0.10-0.20 0.12-0.24
200(170-240)
Nodular cast iron GGG Kugelgra- phitguss
160-250
16.0-23.0 24.0-30.0 31.0-38.0 39.0-46.0 47.0-58.0
0.05-0.09 0.05-0.12 0.06-0.14 0.08-0.16 0.10-0.20
160(130-200)
N
Al alloy
Alulegierung
60-110
16.0-23.0 24.0-30.0 31.0-38.0 39.0-46.0 47.0-58.0
0.05-0.10 0.05-0.14 0.08-0.16 0.10-0.20 0.12-0.24
300(250-350)
Recommended cutting data for shallow drills · Empfohlene Schnittdaten für WSP-Bohrern
